Design case 2: Reduced Order Modeling of Coupled Systems

Simulation results:    Transient response after a voltage jump (pull down mode)
Simulation results: Transient response after a voltage jump

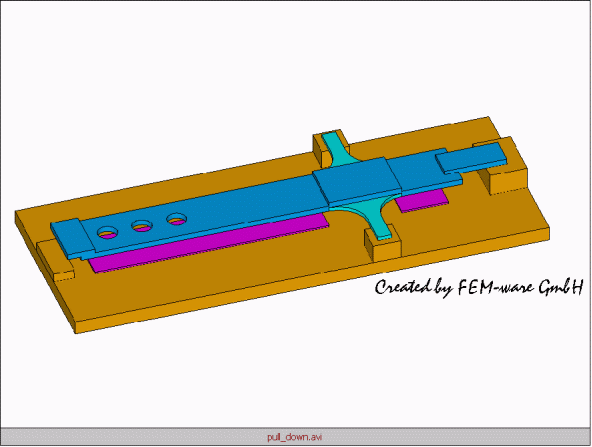

Click on above picture to animate the transient response. The shape and dimensions of the microswitch
were optimized to lower the operating voltage, to reduce switching and release time and to minimize the
material stress. Note the roundings at the torsion springs and the perforation holes.
